Product Introduction

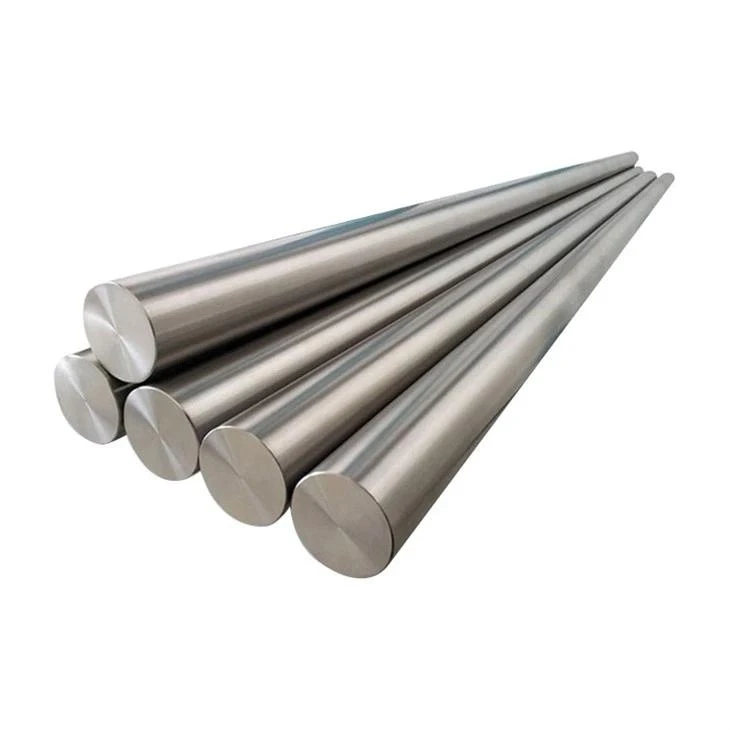

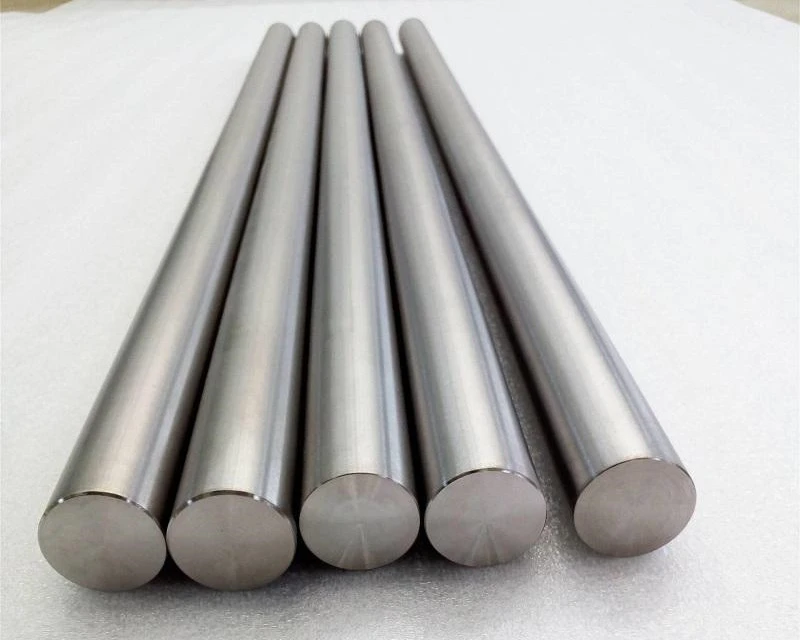

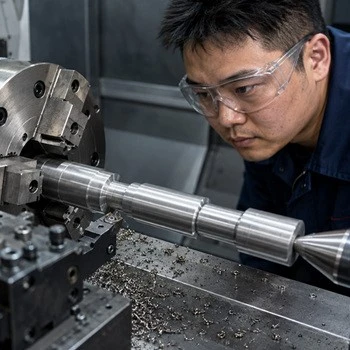

- Gr5 Titanium Rod For CNC is supplied as Ti-6Al-4V machining stock for components that require higher mechanical strength and reduced part weight. Typical machining routes include turning, milling, drilling, threading and combined multi-axis processing for load-bearing or functionally complex parts.
- Instead of selecting material only by nominal diameter, buyers should consider the finished-part envelope, roughing allowance, chucking length, section changes and the number of machining setups. These details help determine whether full-length rod, individual cut blanks or partially prepared stock will provide a more efficient starting form.
- The rod can be prepared for components such as threaded couplings, stepped pins, actuator parts, flanged connectors and machined brackets where substantial material removal or multiple machining operations are expected.
Product Parameter
|
Specification |
Typical Value |
Standard / Note |
| Material Grade | Ti-6Al-4V (Gr5) | ASTM B348 |
| Diameter Range | 8-200 mm | Common supply range |
| Length Range | 300-3000 mm | Cut-to-length available |
| Supply Condition | Annealed | Suitable for general CNC machining |
| Surface Finish | Forged, Turned, Peeled, or Ground | Selected according to machining route |
| Diameter Tolerance | Standard bar tolerance | Tighter control on request |
| Straightness | Standard industrial control | For shaft-type machining, confirm before order |
| Mechanical Properties | According to ASTM B348 Gr5 | MTC available |
| Inspection Scope | Chemistry, mechanical properties, dimensions | UT available if required |
All values shown are typical supply references. Final size tolerance, surface condition, and inspection scope should be confirmed according to the actual machining drawing or purchasing requirement.
Product Features & Application
- High Strength for Machined Components
Gr5 titanium provides a strong balance of strength and weight reduction, making it suitable for CNC-machined parts that need better load capacity than commercially pure titanium. It is often chosen for components where both mechanical performance and lower mass are important.
- Stock Preparation for CNC Routing
Full bars or individual blanks can be supplied according to the part layout and planned machining sequence. Saw-cut length, chucking allowance, chamfered ends and preliminary turning can be confirmed before production to reduce unnecessary preparation after the material reaches the machine shop.
- Corrosion Resistance in Practical Service
Compared with many commonly used engineering metals, Gr5 titanium performs well in humid, chloride-containing, and mildly corrosive environments. This makes it a practical option for machined parts used in marine, chemical, and general industrial systems.
- Typical CNC Applications
Typical uses include titanium shafts, pins, connector parts, bracket components, fastener blanks, fixture parts, marine hardware, and various custom machined parts for aerospace-supporting, industrial, and precision engineering applications.
Product Details
- Material: Gr5 Titanium Rod / Ti-6Al-4V alloy
- Supply Form: Round rod for CNC machining stock, available in full length bars or cut pieces
- Surface Options: Forged, turned, peeled, or precision ground according to processing needs
- Machining Support: Saw cutting, chamfering, and simple pre-machining can be arranged on request
- Quality Control: Dimensions, surface condition, chemistry, and mechanical properties checked according to order requirements
- Documentation: Material certificate and basic shipment documents supplied with the order
Technical Support & Order Service
What We Support
- Material and size suggestions based on the intended CNC machining application
- Cut-to-length supply and simple pre-machining support for trial and repeat orders
- Clear confirmation of lead time, supply condition, and inspection scope before production
- Quality documents and dimensional verification provided according to order requirements
- Follow-up support for repeat orders to help maintain material and size consistency
FAQ
Q1: Which standard governs fracture toughness testing?
A: ASTM E561 for titanium alloys, typical value ≥55 MPa√m.
Q2: What cutting parameters are recommended for CNC?
A: For Ø16 mm rod, Sandvik 1225 insert, flood coolant, excluding threading: Vc = 40 m/min, feed = 0.15 mm/rev, depth ≤2 mm.
Q3: Is ultrasonic testing performed on all batches?
A: Yes, 100% UT using 10 MHz dual-element probe, 0.3 mm side-drilled hole sensitivity.
Q4: Can you supply rods for marine shafting?
A: Yes, DNV-GL certified material available with full mechanical property traceability.
Q5: What are the storage requirements?
A: Store in RH<60% environment, away from chloride contamination.
Company profile
Baoji Zhongxinbao Metal Materials Co., Ltd. is based in Baoji, China, a well-known production area for titanium materials. We supply titanium bars, rods, plates, tubes, and custom-machined products for industrial, marine, medical, and aerospace-related applications.
For Gr5 Titanium Rod For CNC, we focus on practical supply support for machining users, including standard size availability, cut-to-length service, and supply conditions matched to downstream processing needs. With flexible customization and stable quality control, we support customers sourcing titanium stock for CNC production and custom part manufacturing.
