Product Overview

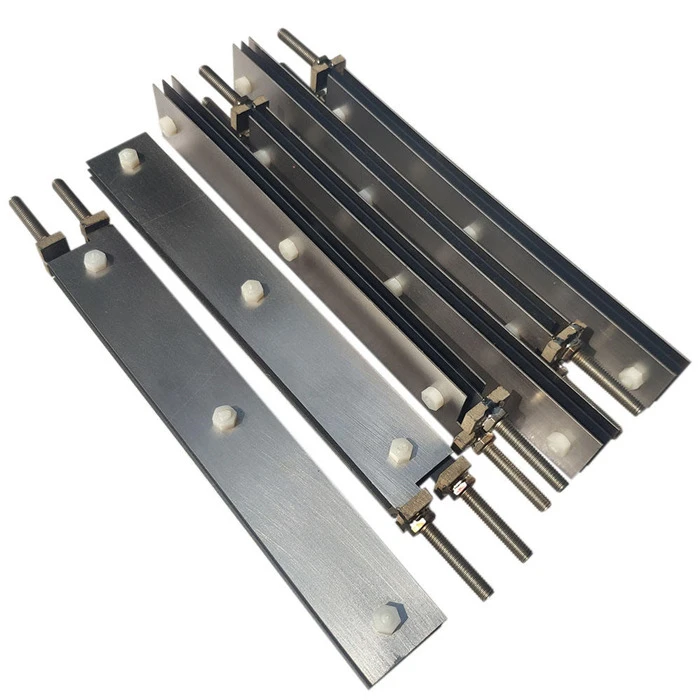

Our Seawater Electrochlorination Titanium Anode is a Ru-Ir MMO coated titanium electrode developed for equipment using seawater or other chloride-containing water. The coated working surface supports chlorine evolution, while the titanium substrate provides the required electrode structure.
For OEM and replacement projects, the anode is normally reviewed together with its effective coated area, operating current, chlorine production target, dimensions and connection design. Baoji Zhongxinbao supplies plate, mesh and custom electrode structures based on equipment requirements or customer drawings.
Quick Details
| Item | Description |
| Product | Seawater Electrochlorination Titanium Anode |
| Substrate | Titanium Grade 1 / Grade 2 |
| Coating | Ru-Ir MMO |
| Product Form | Plate / Mesh / Custom |
| Main Use | Seawater Electrochlorination Equipment |
| Supply Type | OEM / Replacement / Custom |
Material & Product Features
- Ru-Ir MMO Working Surface
The active coating is designed for chlorine evolution in chloride-containing seawater environments.
- Defined Coated Area
Working and uncoated connection areas can be arranged according to the electrode and cell layout.
- Custom Electrode Structure
Dimensions, mounting holes, titanium tabs and connection details can be produced according to drawings.
Specifications
| Specification | Typical Supply |
| Titanium Substrate | Grade 1 / Grade 2 |
| Active Coating | Ru-Ir MMO |
| Electrode Form | Plate / Mesh |
| Coated Area | Customized |
| Dimensions | Drawing-Based |
| Connection Type | Tab / Threaded / Custom |
| Working Medium | Seawater / Chloride Water |
| Operating Load | Project-Specific |
Applications
Power Plant Cooling Water
Electrodes for seawater electrochlorination units supporting biofouling control in cooling-water systems.
Desalination Intake Systems
Used in electrochlorination equipment serving seawater intake and pretreatment sections of desalination plants.
LNG Terminal Seawater Systems
Customized anodes for seawater treatment equipment used in terminal cooling and utility-water circuits.
Refinery Cooling Water
Applied in electrochlorination systems used to manage biological growth in seawater cooling circuits.
Marine Utility Water
Suitable for compact seawater electrochlorination equipment used in marine and shipboard utility systems.
Industrial Seawater Intake
Used in customized chlorine-generation equipment for industrial seawater intake and circulation systems.
Engineering Selection: Active Area & Current Density
- Effective Working Area
The external size of an anode is not always equal to its effective electrochemical area. Coated surfaces exposed to the electrolyte and used in the actual cell arrangement should be considered when reviewing the working area.
-
Current Density
Current density links the operating current with the effective coated area:
Current Density (A/m²) = Operating Current (A) ÷ Effective Coated Area (m²)
At the same current, changing the active area changes the average current density. This is one reason anode dimensions should be reviewed together with electrical operating data.
- Chlorine Duty Inputs
Target chlorine production is a useful starting point, but it should be considered together with current, seawater conditions and cell configuration. For customized projects, these inputs help define a suitable electrode for further technical review.
Quality & Inspection
Material Documentation
Titanium substrate material documentation can be supplied according to the agreed order requirements.
Dimensional Inspection
Overall dimensions, mounting holes and connection positions are checked against the approved drawing.
Coating Appearance
The coated working surface, visible coverage and defined coating boundaries are reviewed during production.
Drawing Verification
Customized structural and connection details are confirmed against the approved manufacturing information.
Packing & Delivery
Surface Protection
Coated working surfaces are separated to reduce direct contact and handling damage during transportation.
Connection Protection
Tabs, threaded areas and projecting connection structures receive additional protection where required.
Export Packing
Packing is selected according to electrode dimensions, quantity and structural characteristics.
Product Identification
Drawing numbers or agreed product references can be used to distinguish customized electrode items.
Before Quotation
Electrode Design
Please provide the required anode form, main dimensions and coated working area if already specified.
Operating Data
Share the target chlorine production together with available operating current and voltage information.
Seawater Conditions
Seawater salinity or chloride level, temperature and flow information are useful when available.
Drawing & Quantity
Send the required quantity together with drawings, connection details or existing electrode references.
FAQ
Q1: Can the coated area be customized?
A: Yes. Coated and uncoated areas can be arranged according to the electrode structure and approved drawing.
Q2: Can you supply replacement anodes?
A: Yes. Existing drawings, dimensions, connection details and clear product photos can support preliminary review.
Q3: Can an anode be selected from chlorine output?
A: Chlorine output is an important input, but current, active area, seawater conditions and cell configuration should also be considered.
Q4: Are plate and mesh anodes available?
A: Yes. Plate, mesh and other customized titanium electrode structures can be manufactured according to equipment requirements.
