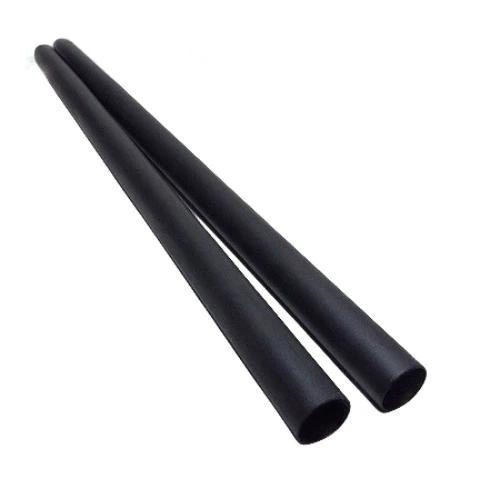

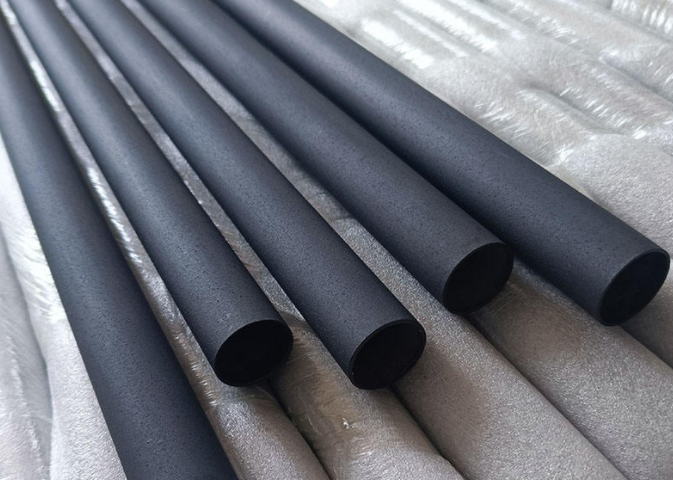

Ru-Ir Coated Titanium Anode Tube
Ruthenium–iridium (Ru–Ir) coated titanium anodes are MMO anodes designed for efficient chlorine evolution in chloride electrolytes, offering low operating voltage and stable long-term performance. They are widely used in electrochlorination, hypochlorite generation, and industrial water treatment applications.
Products overview
Ruthenium–iridium (Ru–Ir) coated titanium anodes are mixed metal oxide (MMO) anodes designed for efficient chlorine evolution and stable operation in chloride-containing electrolytes. By combining the high catalytic activity of ruthenium oxides with the enhanced durability contributed by iridium, Ru–Ir coatings provide a balanced solution for applications requiring low operating voltage and reliable long-term performance.
Supported by a corrosion-resistant titanium substrate, Ru–Ir coated anodes offer excellent electrochemical stability, uniform current distribution, and good mechanical strength. They are widely used in electrochlorination systems, chlorine and hypochlorite generation, industrial water treatment, and other electrochemical processes where chlorine evolution efficiency and energy consumption are critical factors.
Product Parameter
|
Specification |
Typical Value |
|
Substrate |
Grade 1 Titanium Tube (ASTM B338) |
|
Coating Material |
Ru-Ir Mixed Metal Oxide (MMO) |
|
Coating Thickness |
5–12 μm (ASTM B487) |
|
Tube Outer Diameter |
10–38 mm (customizable) |
|
Wall Thickness |
0.9–2.0 mm (customizable) |
|
Operating Voltage |
1.2 – 2.4 V |
|
Current Density Range |
100 – 350 A/m² |
|
Service Life |
≥18,000 A·h |
|
Recommended Model for AR>8:1 |
12μm thick coating (Model suffix "-H") |
|
Cathodic Efficiency |
≥22% (per Ford Lab STD-4632) |
|
Operating Temperature |
20 – 60°C |
Tested in acidic plating bath at 200A/m², 35°C, continuous duty.
Features & Application
Electrochlorination
Sodium Hypochlorite Generation
Water & Wastewater Treatment
Chlorine & Chlor-Alkali Related Processes
Cathodic Protection Systems
Industrial Electrolysis & Special Electrochemistry
Ru–Ir coated titanium anodes can be manufactured in various forms, including plates, meshes, tubes, and custom-shaped structures, allowing flexible integration into different cell designs and operating conditions. Coating composition and loading can be adjusted according to electrolyte characteristics, current density, and expected service life, providing practical adaptability for both industrial and municipal applications.
FAQ - Tubular titanium anode
Q1: We operate AR10:1 deep-hole gold plating lines. How should we evaluate anode lifetime?
A: In 250A/m² current density, standard lifetime is ~7,200 hours. For ultra-deep structures, apply a 0.8 correction factor. A free estimation guide is available.
Q2: Can this anode tube be configured for non-standard plating tanks?
A: Yes. We provide slot-matched pipe fitting solutions based on your technical drawings or measurements.
Q3: How do we validate coating performance before use?
A: Each batch includes SEM coating images and EDS reports; test sections are also available upon request.
Q4: Is it okay to use in mixed chloride-fluoride environments?
A: Not recommended if fluoride exceeds 200ppm. We suggest switching to the TA-F variant for chemical compatibility.
Q5: Can I get just a few units for prototype testing?
A: MOQ is 10 pcs, but we support trial orders and help simulate bath performance prior to mass use.
Company profile

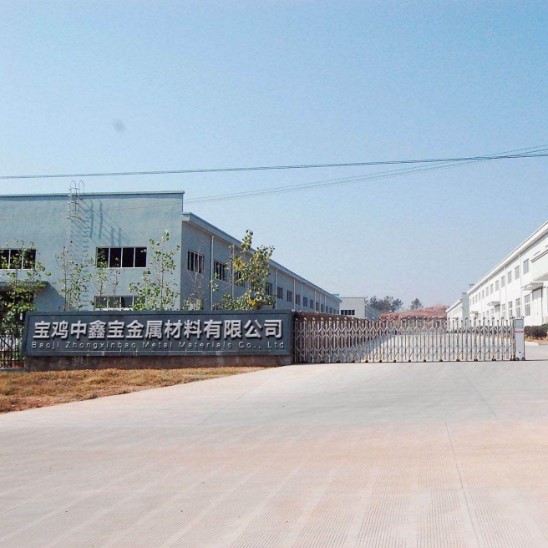

Baoji Zhongxinbao Metal Materials Co., Ltd. specializes in engineered titanium anode solutions for electrochemical industries worldwide. With proprietary coating technology, ISO-certified processes, and deep customization capabilities, we serve customers requiring long-lifetime, slot-specific, and performance-verified titanium electrodes.
